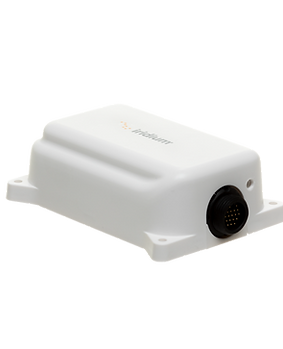

Iridium Edge Pro
Deep dive into our innovating solution
Mechanical specifications:
Dimentions: 127 x 90 x 41mm (LxWxH)
Weight: 200g
Connection: 18 Pin Female-contact
Contach housing: Included for extra protection
​
Power:
Powersupply: 7-32V
Consumption: Max 1.6W
Sleep mode: <100uA
Backup batteri​: Yes
Connections:
Bluetooth, CANbus, Modbus & USB
2x Analog inputs/outputs
2x Digital inputs/outputs
RS485
RS232
​
Internal sensors:
Accelerometer
Tempsensor
GPS/GLONASS/GALILEO/BEIDOU
Power​
Environment specifications:
Storage temp: -40-85 Celsius
Use temp: -40-70 Celsius
Shock: 1 meter falltestet
Storage low pressure: 9.100meter
​
Tested according to:
DNVGL-CG-0339:2019
IACS E10 Rev.7:2018
IEC/EN 60945:2002 + Cor1:2008
Nemko certified: Report.nr: E21079.01
In accordance with requirements from The Norwegian Department of Fisheries.
Secure storage of data.
Developed by SGM-Tech as a Iridium VAD ( Value Added Developer)
*Support for external keypad
100% Iridium satellite network connection
​
Software & Platform developed in Norway
SGM's Catch report is an application that is used on a smartphone/tablet. It may also be used from a PC.
​
*External keypad functionality are currently being developed
Cloud based
Compression
Adapt
Support
Third party
Cloud based solution
We offer a cloud based solution for extraction of reports.
Go back in time and see how much you've caught. Export vital data or simply use the system to get a situational view of your fleet.
Compression
We have developed a way to compress the messages required by Norwegian law. By doing this we're cutting the end-user cost significantly.
Adapt
We've developed our solution from scratch and can therefor offer configurations and adjustments to third-party systems.
Support
We want only the best for our customers and strive to offer a simple, cost effective, yet powerful solution for our users. We chose 100% Iridium connection.
This way the user won't experience issues with switching between satellite and GSM nettwork (3G/4G/5G)
Intergration
We can integrate with third party solutions that the end user can benefit from.
Our connections for interfacing are:
-
Bluetooth/BLE
-
Canbus
-
Modbus
-
Analog signal
-
Digital signal
Minimer din kommunikasjonskostnad med våre optimaliserte løsninger for fartøy og mannskap.
Våre tjenester vil sikre at du overholder regelverket mer effektiv, samtidig som du gir deg den beste teknologien og tilkoblingene for å dekke dine behov, uansett hvilken fartøytype eller budsjett du har.
​
Fremfor alt er sikkerhet avgjørende, våre løsninger vil sikre at du er utstyrt for alle nødsituasjoner, så vel som alltid koblet til den hjelpen du måtte trenge.
Vårt omfattende nettverk av partnere tillater oss å tilby skreddersydde løsninger over Ka-, Ku- og L-Band til minst mulig kostnad i tillegg til inkluderte sikkerhetssystemer.
​
Vi tilbyr en rekke pakkeløsninger som kan skreddersys dine operasjonsområder, for å hjelpe deg med å unngå potensielle problemer som for eksempel overforbruk eller betaling av unødvendige datapakker.
​
Vårt virtualiseringsmiljø gir deg enorm fleksibilitet for installasjon av kritiske applikasjoner på fartøyet ditt og hjelper deg å holde kontakten med avanserte løsninger aktivert av IoT.
​
Oppdag hva vi kan gjøre for deg
